Feature | Description |
Endoscope Processing Board Size | 160mm*135mm*10mm |
Endoscope Processing Board Power | 8.4V / 5W |
Endoscope Processing Board Sensor | OV6946、OCHFA10、OH01A10、MIPI OV9734、USB Camera |
Endoscope Processing Board Supported Functions | blood oxygen, dual-image display, white balance, passwordprotection, and lighting adjustment |
OV6946 Resolution | 400*400 |
OV6946 Outer Diameter | 1.6mm/1.8mm/2.0mm |

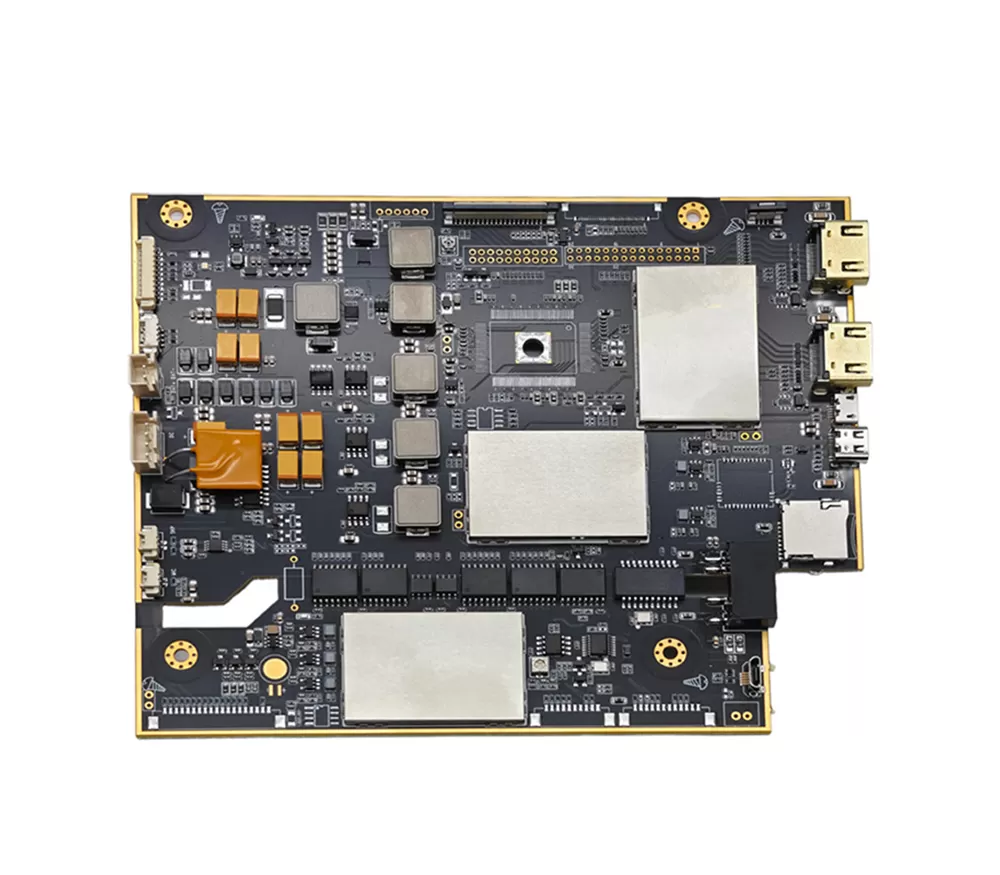

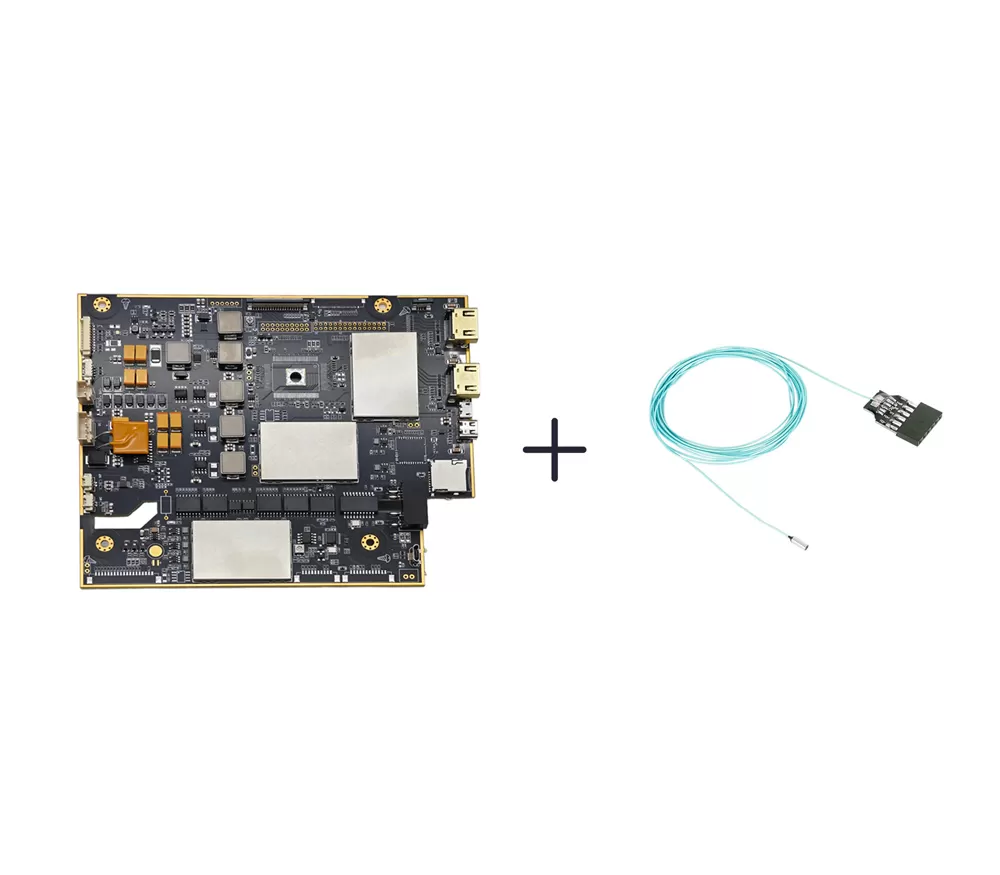

Designed for micro endoscope platforms, the Endoscope Processing Board + OV6946 supports 8–15" displays and delivers precise color rendering, low power consumption, and reliable real-time imaging in ultra-small diameter scopes.
Applied in fine surgical endoscopes, the OV6946 offers high sensitivity and excellent low-light performance, while the Endoscope Processing Board provides white balance, illumination control, and dual-image display for clear intraoperative visualization.
Ideal for compact diagnostic systems, the Endoscope Processing Board ensures stable image processing and brightness adjustment, while the OV6946’s miniature size enables flexible use in confined or curved inspection areas.
