Feature | Description |

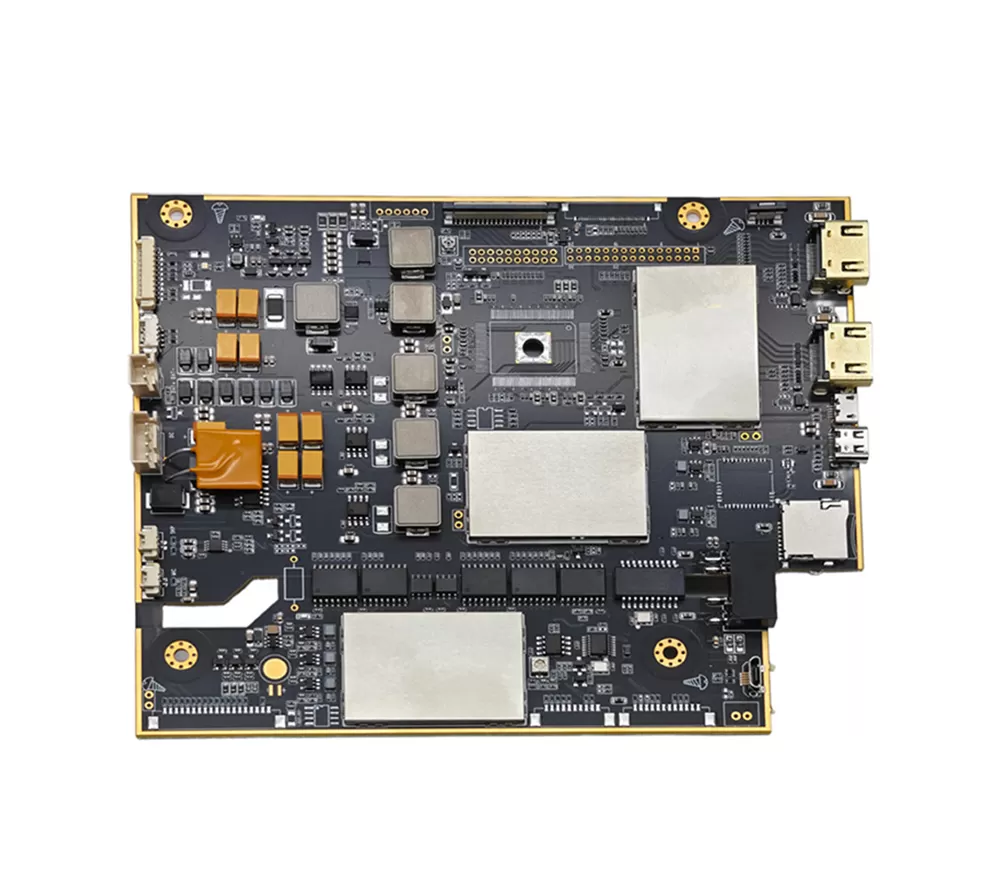

Endoscope Processing Board Size | 160mm*135mm*10mm |
Endoscope Processing Board Power | 8.4V / 5W |
Endoscope Processing Board Sensor | OV6946、OCHFA10、OH01A10、MIPI OV9734、USB Camera |
Endoscope Processing Board Supported Functions | blood oxygen, dual-image display, white balance, passwordprotection, and lighting adjustment |
OCHTA10 Resolution | 400*400 |
OCHTA10 Outer Diameter | 1mm/0.85mm(Optical Fiber ) |

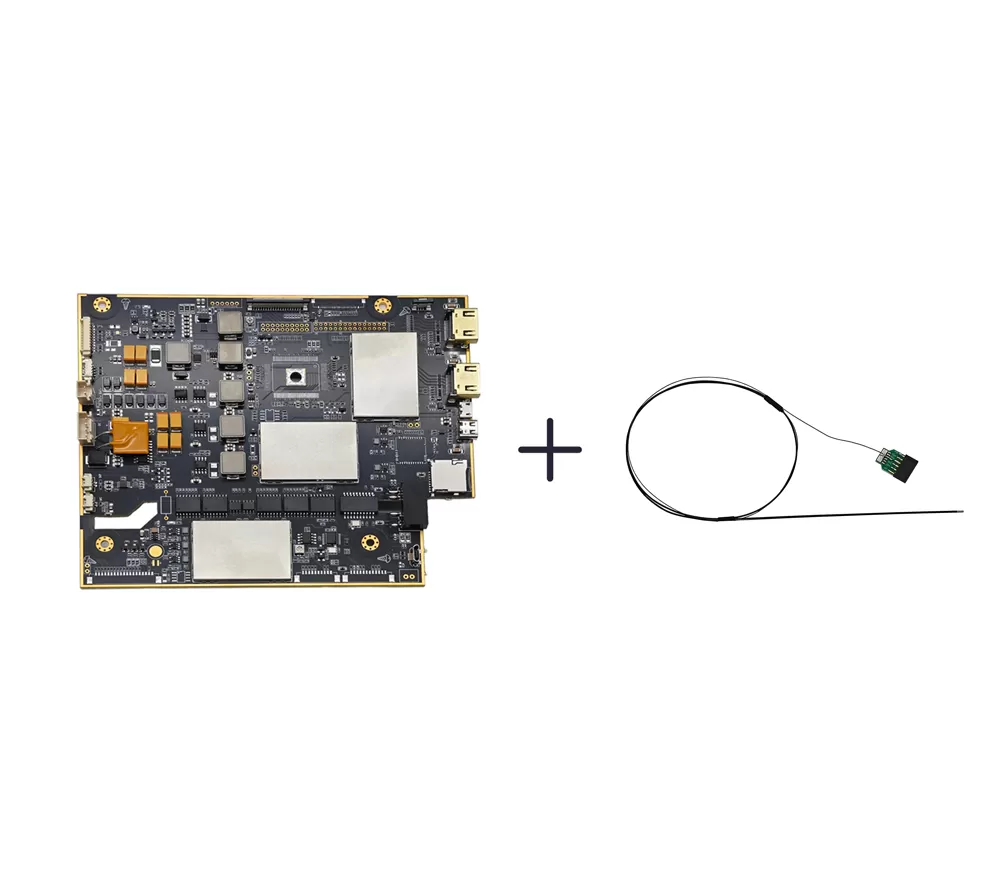

Developed for Endoscopy Systems, the Endoscope Processing Board + OCHTA10 supports 8–15" displays and provides high-resolution, real-time imaging. The OCHTA10’s 1 mm and optional 0.85 mm fiber versions enable precise visualization in extremely narrow cavities.
Applied in delicate surgical and diagnostic endoscopes, the OCHTA10 offers superior detail and low-light performance, while the Endoscope Processing Board ensures stable image control, adjustable brightness, and accurate color rendering.
Ideal for micro-inspection and biomedical research systems, the Endoscope Processing Board allows dual-image display and customization, while the OCHTA10 delivers ultra-clear imaging and exceptional maneuverability in confined or curved environments.
