Name: OV9734 Endoscope Camera Module
Brand: Shenzhen Maiyis Technology Co., Ltd.
Availability: InStock

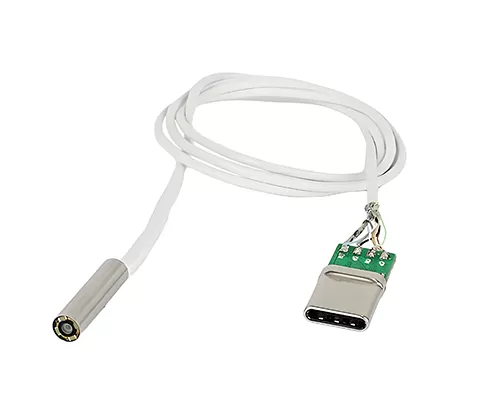

OV9734 Endoscope Camera Module

The compact OV9734 modular camera (3.9mm lens, 4-LED) delivers 720p HD clarity for industrial inspections in tight spaces. Its IP67-rated housing withstands dust, moisture, and extreme temps (-20°C~70°C), while adjustable LEDs illuminate dark pipelines. Direct USB output simplifies real-time defect detection.

Specification of OV9734 Endoscope Camera Module

Feature	Description
Supported Resolution	1280x720P
Supported Pixels	920,000 pixels
Bending Angle	180 degrees
Depth of Field	3-50mm
Camera Diameter	3.9mm
LED Lights	4 pieces
Waterproof Rating	IP67
Cable Length	10-300cm (customizable upon request）

Advantages of OV9734 Endoscope Camera Module

Oral Cavity Inspection

Enables clear visualization of teeth/gum conditions with 4LED illumination in confined spaces.

Industrial Pipe Maintenance

Detects corrosion or blockages in narrow pipelines (<4mm diameter) with high-definition imaging.

Electronics Debugging

Inspects micro-soldering points on PCBs under LED-enhanced close-up view.
